Product Description:

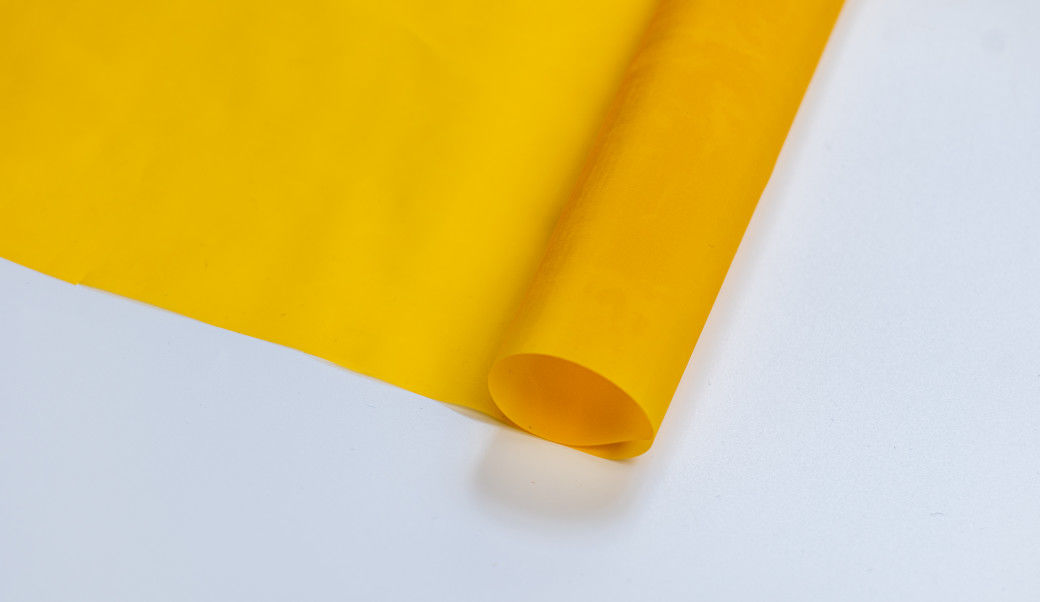

VEKEN BRAND HIGH MODULUS SCREEN MESH FOR PCB AND PANEL PRINTING
The Chinese famous product origin from a Sino-Japan joint venture company;
Welcomed in various fields, it keeps gaining great feedbacks from Customers.
Mesh products is widely used in Korean & Vietnamese PCB stencil manufacturers
Features & your benefit :
- High modulus [eg. 420-27 max 28N]
- Less tension loss [10%in 24 hr, 12% in7 days],Less modulus changes
- High open ratio makes excel resolution.
- Enhanced dimensional accuracy
- Available plasma treatment let emulsion adhesively bonded on mesh
- Complete products line, various counts /width, multi color available
- Durable and 15% Longer serivce time than other mesh
- *PLASMA* Treatment to enhance adhesion of emulsion
- Best quality aftersales service , free to exchange if you found any defects while in using .
Technical Parameters:
| Attribute |
Value |
| Product Name |
SCREEN PRINTIG MESH FOR PCB and PANEL |
| Mesh counts |
165T/420 mesh |
| Series |
VEKEN V-PLSERIES |
| Modulus |
max 28N |
| tencile loss |
10%in 24 hr, 12% in7 days |
| Color |
white / amber / lemon yellow |
| tencile Strength |
Strong |
| application |
Pcb printing stencil , cover panel printing stencil |
| Width |
127cm - 165cm ; 45inch - 65 inch as requsted |
| Ink Volumn |
tested well |
| opening |
29μ |
| Thickness |
41μ |
| Graphic solution |
tested well |
| diameter |
27 Micron |
Applications:
TOP VEKEN V-PL SERIES MESH is super high quality and ideal screen printing mesh for high end electronic printing like pcb / touch screen / appliance panel cover factory etc
It has excellent modulus and less tensile loss after stretching.
fitted to various stencil / screen mask material , V mesh is highly popular among in Korea, Vietnam , Japanese Customers.
Soonest stretching time to get max tension beucause V series mesh has very low elongation and almost few elastic, which improve your efficiency of stencil output
Your perfect solution for printing needs.
Test Report of V-PL mesh Plasma Treatment:
Under the conditions of a temperature of 23°C and a humidity of 40%, after using a sticky roller to roll back and forth 10 times on the surface of the printing plate, measure the charge amount within 2 minutes and the half - life.
Details of the test method: Conduct according to the company's test method.
Results
① Adhesion (bonding property): For "V-PL Series Mesh" that has undergone plasma processing, it has been confirmed that its adhesion exceeds that of PET1500.
② Anti-static effect: For “V-PL Series Mesh" processed by plasma, no improvement in the anti-static effect has been confirmed. It shows that its anti-static effect is worse than that of SMP300-34 and PET1500.
Conclusion
It can be determined that the plasma-processed V-PL Series Mesh, even without cleaning, also performs excellently in terms of the adhesion of the photosensitive emulsion.
However, due to its lack of an anti-static effect, it does not have the function of preventing dust adhesion during the drying process.
